WET TYPE DRAWING MACHINES FOR COPPER WIRE

Applicable wide range of size from Rod break down(8.0mmφ) to ultra fine wire (0.05mmφ)
Various lubricant system such as full immersion type or spot shower type

WET TYPE CONTINUOUS WIRE DRAWING MACHINES

•Wet type drawing machines are best suited for breaking down copper and aluminium wires, and drawing iron and steel wires.
•Worm gear or spiral bevel gear capstan drive system reduces transmission noise and vibration.
•Take your choice of spooler, non-stop coiler, or bending coiler take-up systems.
•Special model DPR drum-type long pointing unit is avaliable.

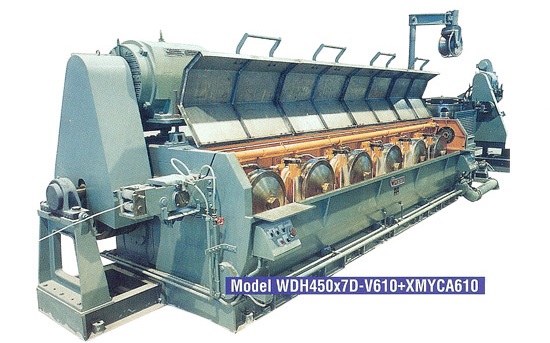

Model WDH450x7D-V610+XMYCA610

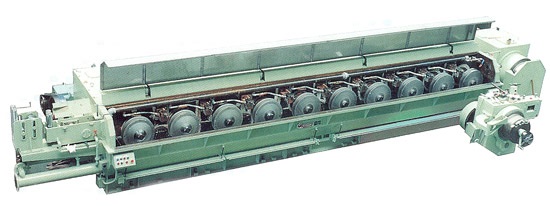

Model WDH450x11D-H560

Model	WDH 450 x 7D-V610	WDH 450 x 5D-V610
Main Motor	130KW4P	100KW6P
Supply Wire Dia.(tensile strength)	5.5ø～7.0&ø;mm(50kg/mm²)	5.5ø～7.0&ø;mm(50kg/mm²)
Finish Wire Dia.	1.8ø～5.0ømm	2.6ø～5.0ømm
Speed	max.600m/min～	max.450m/min～
Dies	max.7 Dies	max.5 Dies
Finished Wire Delivery	Carrier type coil from coiler / bobbin removal froom spooler

Miyazaki will be glad to design and manufacture for your special needs.

WET TYPE FINE WIRE CONTINUOUS DRAWING MACHINES

•Wet type wire drawing machines are applicable for multiple cone spindle drawing processes as well as drawing all kinds of steel, wire, copper wire, CO² wire, stainless steel wire, non-ferrous wire, alloy wire, and plated wire.
•Connected with an automatic spooling unit, these machines can give you 24-hour unmanned operation capability.
•Types for simultaneous drawing of multiple wires are also avaliable.

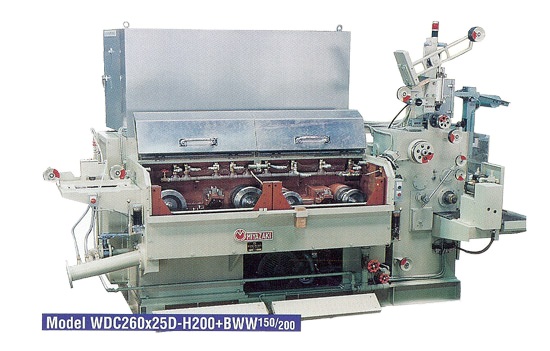

Model WDC260x25D-H200+BWW150/200

Model SWC80x20D+BWS100
Continuous drawing machine for fine wire

Model SWC194×26
with annealing unit

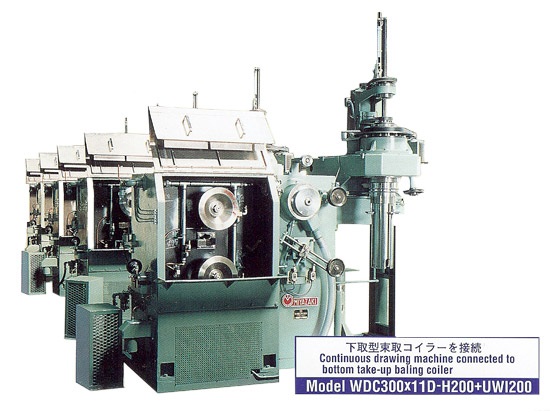

Model WDC300X11D_H200+UWI200
Continuous drawing machine connected to bottom take-up baling coiler
